| MOQ: | 1 |
| 価格: | Customized |
| 標準パッケージ: | 合板ケース |
| 配達期間: | 30日 |
| 支払方法: | T/T |
| 供給能力: | 月5セット |

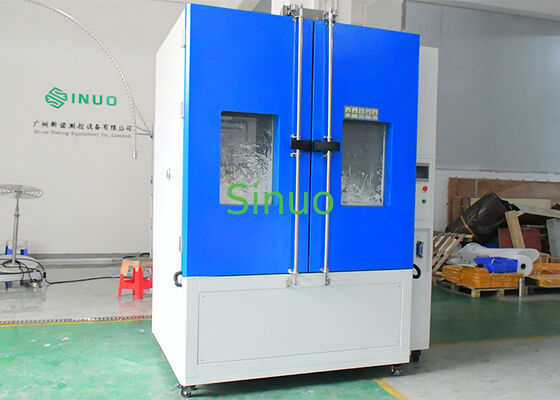

The Sand and Dust Test Chamber is a high-performance environmental simulation testing system designed in strict accordance with IEC 60529 IP5X / IP6X standards. It is widely used to evaluate the dustproof performance and sealing reliability of electrical and electronic products, automotive and motorcycle components, outdoor equipment enclosures, and sealing systems and connectors.
This advanced dust ingress testing equipment simulates real-world sandstorm and airborne dust environments to determine how particulate contamination impacts product durability, safety, and performance.
The system adopts a closed-loop dust circulation mechanism: dust is collected at the bottom funnel, a high-pressure turbine fan extracts and transports dust, dust is redistributed from the top of the chamber, and gravity ensures uniform downward dispersion.
This continuous cycle accurately reproduces dust-laden airflow environments, essential for IP dust ingress testing.
| Parameter | Specification |
|---|---|
| Inner chamber size | 1500*1000*1500mm (W*D*H) |
| Outer chamber size | Approx. 2000*1800*2300mm (W*D*H) |
| Dust baking temperature range | RT+10℃～60℃ |
| Fine dust | Below 75um |
| Air flow rate | No more than 2m/s |
| Dust concentration | 2kg/m³ |
| Talc dosage | 2～5kg/m³ |
| Dust blowing method | Top-down |
| Air flow meter | 1-20L/M |
| Metal mesh wire diameter | 50um |
| Nominal spacing between lines | 75um |
| Shock time | 1s～99h (adjustable) |
| Test time timing | 1s～99h (adjustable) |
| Dust-blowing control cycle | 1s～99h (adjustable) |
| Vacuum time | 1s～99h (adjustable) |
| Circulation fan | Closed alloy low-noise motor. Multi-blade centrifugal fan |
| Air flow meter | The vacuum rate is measured using a digital flow meter |
| Load-bearing | Max. 100kgs |
| Observation window | 1 pcs |
| Lighting | 1 pcs |
| Control system test piece power socket | Dustproof socket AC220V 16A |
| Control system | PLC controller + touch screen (Sinuo) |
| Vacuum system | Pressure regulating valve, suction nozzle, pressure regulating three-piece set, connecting pipe, vacuum pump |
| Dust heating system | Stainless steel mica heating jacket |
| Inner chamber material | SUS201 stainless steel mirror panel |
| Outer chamber material | A3 iron plate electrostatic spraying treatment |
| Power | 3KW (no load) |
| Safety protection system | Phase sequence protection, leakage protection, abnormal protection, instrument over-temperature protection |
