IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L

MOQ: 1
価格: 交渉可能
標準パッケージ: 合板ケース
配達期間: 30日
支払方法: T/T
供給能力: 毎月10セット
詳細情報
製品説明
詳細情報
起源の場所
中国
ブランド名
Sinuo
証明
Calibration Certificate (Cost Additional)
モデル番号
SN441-1000L
微塵:
75um以下
粗い塵:
150um以下
塵集中:
2kg/mの³
空気流量計:
1〜20L/M
焼き粉温度:
NT1 熱度
タルカムパウダーの投与量:
2kg5kgm3
ハイライト:

IP5X/6X dust test chamber 1000L

,

IEC60529 sand test chamber

,

environmental test chamber with warranty

製品説明
IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L
This equipment is designed for testing electrical and electronic products, automobile and motorcycle parts, and seals to evaluate their performance in sand and dust environments. The chamber simulates conditions that prevent sand and dust from entering seals and enclosures, testing product durability during use, storage, and transportation.
Product Applications
  • Testing electrical and electronic products in sand and dust environments
  • Evaluating automobile and motorcycle components and seals
  • Simulating natural and vehicle-induced sand and dust conditions
  • Assessing harmful effects of particle-laden airflow on electrical products
Technical Specifications
Chamber Dimensions
Parameter Specification
Model SN441-1000L
Working Size (mm) L1000 × W1000 × H1000
Outer Size (mm) L1450 × W1250 × H2200
Performance Parameters
Parameter Specification
Baking Dust Temperature Range RT+10℃～60℃
Fine Dust 75μm or less
Coarse Dust 150μm or less
Air Flow Velocity Not greater than 2m/s
Dust Concentration 2kg/m³
Talcum Powder Dosage 2～5kg/m³
Dust Blowing Method From top to bottom
Negative Pressure Difference Range -10~0kPa (adjustable)
Metal Mesh Diameter 50μm
Nominal Spacing Between Lines 75μm or less than 150μm
Timing Controls
Control Type Range
Shock Time 1s～99h (adjustable)
Test Time Timing 1s～99h (adjustable)
Dust Blowing Control Cycle 1s～99h (adjustable)
Vacuum Time 1s～99h (adjustable)
Construction & Materials
  • Inner Chamber Material: SUS201 stainless steel mirror panel
  • Outer Chamber Material: A3 iron plate with electrostatic spraying treatment
  • Structure Components: Test chamber, dust suction port, circulating dust blowing device, vacuum system, flow valve, heating system, protective screen
  • Observation Window: 1 PC
  • Lighting Lamp: 1 PC
  • Load Bearing: 20kg
Electrical Specifications
Parameter Specification
Power Supply AC380V three-phase five-wire, 50Hz
Circuit Protection 32A air switch with terminal blocks
Power Cable ≥4 square meters
Power Consumption 3KW (no load)
Control System Sample Power Socket Dust-proof socket AC220V 16A
Environmental Requirements
Operating Environment: Temperature (23±5)℃; Relative Humidity 25%～70%RH; Atmospheric Pressure 86～106kPa
Safety Features
  • Phase Sequence Protection
  • Leakage Protection
Chamber Images

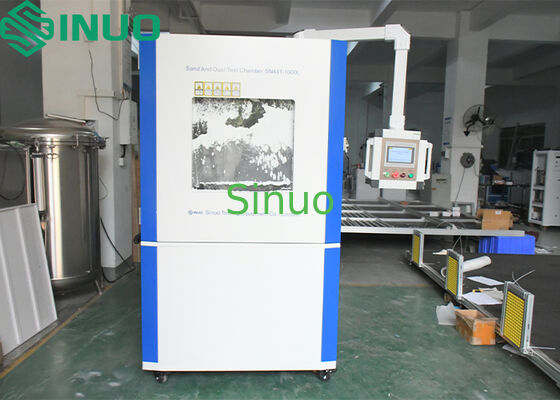

IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L 0
IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L 1
IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L 2
IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L 3
IEC60529 Figure 2 IP5X/6X Sand And Dust Test Chamber 1000L 4
Main Components List
No. Component Name Brand Remark
1 Touch Screen Controller MCGS
2 PLC XINJE
3 AC Contactor CHINT
4 Intermediate Relay CHINT
5 Phase Sequence Protector CHINT
6 Illuminated Button ONPOW
7 Emergency Stop ONPOW
8 Alarm ONPOW
9 Circuit Breaker CHINT
10 Flow Meter Made in China
11 Mica Heating Plate Customize
12 Digital Pressure Gauge SMC
13 Transfer Switch GELEI
14 Vortex Air Pump JIUZHOU
15 Vibration Motor RPM300
16 Smart Thermostat DELTA
17 K2M Probe KERUNMEI
18 Vacuum Mercury FEIYUE
19 Dust Bag Made in China
20 Dustproof Socket Made in China
21 Dust Blowing Pipe Customize
Included Accessories
Accessory Name Quantity Remark
Brush 1 PC
Window Dust Scraper 1 PC
Dustproof Socket 1 SET
Filter Element 5 inches 2 PCS
Compliance Standards: Designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and related standards.
