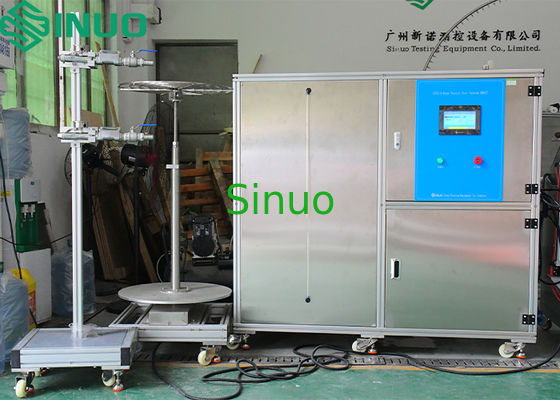

IPX5 IPX6 Water Jet Test System For Waterproof Rating IEC 60529
Product Overview:
Fully conforms to IEC 60529:2013, specifically IPX5 and IPX6 – degrees of protection against water ingress for enclosures.
The device is a high-precision water jet testing system designed to verify the waterproof performance of a wide range of products under controlled spray conditions. It simulates strong water jet impact from all directions to ensure compliance with IPX5/IPX6 requirements.
Wide Application:
Electronic & electrical devices
Automotive and motorcycle components
Household appliances
Sealing structures
Lighting and outdoor fixtures
Structure:
The complete test system includes a set of IPX5 and IPX6 standard water jet nozzles, an electrical control cabinet integrated with a stainless steel water tank, a nozzle mounting support, and a motorized turntable.
During testing, the sample is positioned on the turntable, which rotates at a fixed speed of 1 RPM, allowing water jets to spray the enclosure from all practicable angles, as required by the standard.
The electrical control unit and water storage tank are designed as an integrated module. The system adopts an open-loop water structure, ensuring ease of maintenance and non-recycled clean water for each test.
Technical parameters:
| Parameters of Hose Nozzle |
IPX5: Ф6.3mm; IPX6: Ф12.5mm
|
| Delivery Rate |
IPX5: 12.5±0.625L/min IPX6: 100±5 L/min |
| Distance from Nozzle to Enclosure Surface | 2.8m (The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m) |
| Water Jet Directions | The angle of water jetting can be adjusted |
| Control & Operation | PLC and touch screen intelligent control system |
| Nozzle Fixed Method | Fixed on the support |
| Pressure Gauge | 0~0.25MPa, can be displayed |
| Test Duration | 0.01S～99.9 min, can be preset |
| Turntable | Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs |
| Water Storage Tank | This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated. |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection. |
| Power Supply | AC380V,50Hz, 4KW |
