Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment
  • 名前
  • 名前
  • 名前

Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment

MOQ: 1
価格: 交渉可能
標準パッケージ: エクスポートパッケージ
配達期間: 30日
支払方法: T/T
供給能力: 月5セット
詳細情報
製品説明
詳細情報
起源の場所
中国
ブランド名
Sinuo
証明
Calibration Certificate (Cost Additional)
モデル番号
SN552CTS-100V200A
メインチャンネル:
6チャネル
動作モード:
充電、放電、スタンバイ、停止
充満電圧範囲:
0V-100V
放電電圧範囲:
15V-100V
チャンネル電圧精度:
± ((0.05%RD+0.05%FS)
チャンネル電圧分解能:
0.1mV
ハイライト:

multi-channel battery testing equipment

,

high-precision battery pack tester

,

regenerative battery testing equipment

製品説明

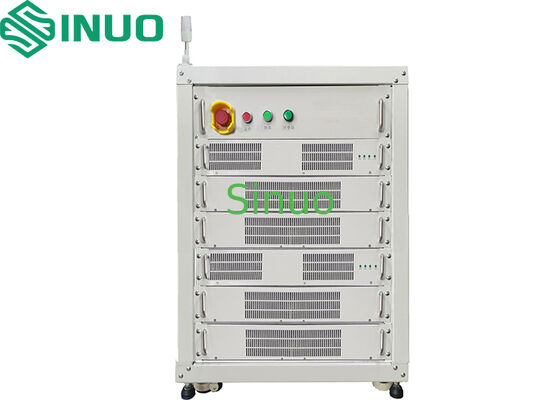

Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment
This advanced regenerative battery pack testing equipment performs comprehensive testing on lithium-ion batteries, including capacity, state of charge, overcharge, and over-discharge assessments. The system features high power, efficiency, precision, and performance with regenerative energy feedback technology that minimizes heat emission, energy consumption, and operating costs.
System Architecture
The equipment consists of host computer, middle computer, DC/AC modules, DC/DC modules, lower computer, and data acquisition system. It collects real-time voltage, current, capacity, and energy data for individual cells, with optional battery temperature monitoring. Data is stored in a specialized database with comprehensive statistics, analysis, and reporting capabilities.
Main Functions
  • Battery cycle life testing
  • Battery capacity testing
  • DC internal resistance testing (optional)
  • Charge/discharge characteristic testing
  • Charge retention testing
  • Charge/discharge efficiency testing
  • Deep discharge / constant voltage discharge testing
  • Overcharge and over-discharge tolerance testing
  • Temperature characteristic testing
  • Battery dynamic and operating condition tests (optional)
Key Features
  • Regenerative energy feedback technology for high efficiency and minimal heat generation
  • Three-phase balance technology reducing grid load
  • Soft-start feature to minimize power grid impact
  • Precision exceeding 0.05% with 1000 ms data logging cycles
  • Independent channels with separate charge/discharge settings
  • Comprehensive protection features including reverse connection and power-off resume
  • No impact current at channel startup with seamless mode transitions
  • Multi-layer network integration supporting over 1000 channels
  • Customizable internal resistance testing for battery cell grouping
  • Modular design for easy maintenance and upgrades
Technical Parameters
Parameter Specification
Model SN552CTS-100V200A
Main Channels 6 channels (fully independent)
Voltage Range Charging: 0V-100V, Discharging: 15V-100V
Current Range ±200A maximum, ±600mA minimum
Accuracy ±(0.05%RD+0.05%FS)
Power Output 20,000W per channel maximum
Efficiency 85% maximum charge and discharge efficiency
Communication RJ-45 Ethernet interface
Cooling Forced air cooling
Environmental -20℃ to 40℃, 10%-90% RH non-condensing
Equipment Advantages
  • High energy feedback efficiency up to 85%
  • High output precision with minimal current drift
  • Comprehensive safety protection features
  • Battery reverse connection protection
  • Smooth transitions between constant current and voltage modes
  • Soft-start function preventing current spikes
  • High precision DC internal resistance testing
Component List
Component Manufacturer Origin
MCU ST / TI Italy / France / USA
Fan Delta / Chint China
Fuse Littlefuse / Bussmann USA
Sampling Resistor ISABELLENHÜTTE Germany
Relay OMRON Japan
Safety Notes
Ensure proper equipment grounding, maintain clear workspace, do not open internal panels during operation, verify test channels are idle before battery connection/removal, and use emergency stop switch in case of emergencies.
