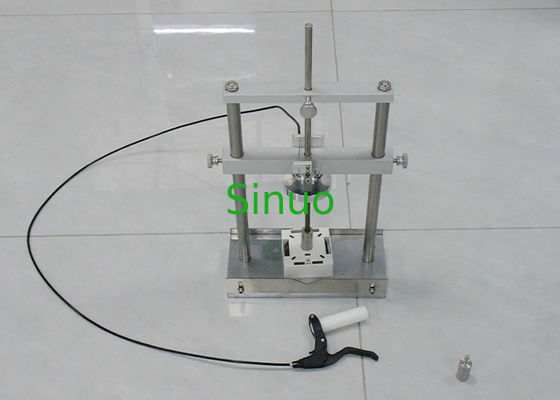

IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment
Product Information:
The Low Temperature Impact Test Apparatus is specially designed for testing the impact resistance of cable insulation and sheath materials under low temperature conditions. It complies with IEC 60811 and other related international standards, ensuring accurate and reliable results for cable performance evaluation.
This device is used together with a temperature chamber (prepared by the user) to simulate low temperature environments during impact testing. It is an essential instrument for cable manufacturers, testing laboratories, and research institutes.
Key Features:
Standard Compliance – Designed according to IEC 60811 and related standards
Adjustable Drop Height – 10 to 250 mm, suitable for different testing needs
Flexible Weights – Configurable with 100 g, 200 g, 300 g, 400 g, 500 g, 600 g, and 750 g weights
Durable Construction – High-quality materials ensure accuracy and long service life
Safety Accessory – Equipped with a 40 mm thick sponge-rubber pad for secure testing
Single Test Station – Easy to use, reliable operation in combination with temperature chamber
Technical parameters:
| Parameter | Specification |
|---|---|
| Standard | IEC 60811 and other applicable standards |
| Test Method | With temperature chamber (user-supplied) |
| Test Station | Single station |
| Falling Height | Adjustable from 10 mm to 250 mm |
| Configured Weights | 100 g, 200 g, 300 g, 400 g, 500 g, 600 g, 750 g |
| Accessory | 40 mm thick sponge-rubber pad |
Applications:
Cable Insulation & Sheath Materials – Impact resistance testing at low temperatures
Wire & Cable Manufacturers – Quality control and R&D testing
Testing Laboratories – Standard compliance and certification testing
Research Institutes & Universities – Material durability and performance evaluation
