| MOQ: | 1 |
| 価格: | Customized |
| 標準パッケージ: | 合板ケース |
| 配達期間: | 30日 |
| 支払方法: | T/T |
| 供給能力: | 1 1ヶ月あたりにセット |

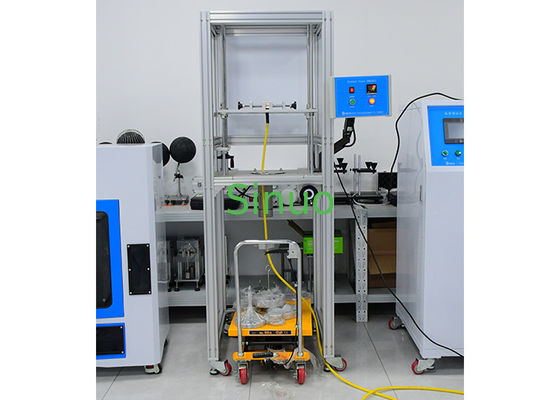

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine
Product Information:
This Terminal Testing Machine is specially designed in accordance with IEC 62196-1:2022 clause 13.3.1, figure 12, and table 3. It is used to evaluate the strength, durability, and reliability of clamping screw terminals to ensure safe performance under normal operating conditions.
The equipment checks whether the screw terminal design prevents over-damage to the wire and withstands mechanical stress during normal use. With preset testing cycles, automatic stop, and alarm function, the tester provides accurate and efficient compliance testing for electrical accessories.
Key Features:
Conforms to IEC 62196-1:2022 requirements
Preset testing times (1~9999 cycles, default 150 times in 15 min)
Automatic stop with alarm when cycles are completed
Adjustable rotating weight from 0.4 to 70.3 kg
Rotating speed: (10 ± 2) r/min
Wide range of bushing hole diameters: 6.5mm to 44.5mm
Adjustable test height: 260–660mm
Robust design for long-term durability
Technical Parameters:
| Parameter | Specification |
|---|---|
| Power Supply | AC220V, 50/60Hz |
| Counting Range | 1 ~ 9999 cycles (default: 150 times / 15 min) |
| Rate of Testing | (10 ± 2) r/min |
| Rotating Weight | 0.4 ~ 70.3 kg (details per IEC table 3) |
| Rotating Diameter | 75 mm |
| Bushing Hole Diameters | 6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5 mm |
| Adjustable Height (H) | 260 ~ 660 mm |
| Machine Dimensions (L×W×H) | 790 × 400 × 1500 mm |
The busing and mass configuring is as following table:
