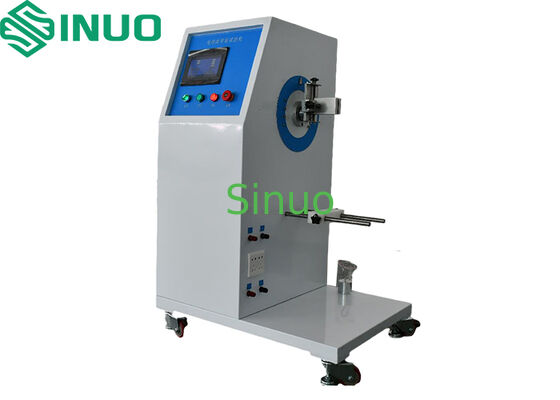

IEC61386-1 Flexible Conduit Bending Tester 0-360° Adjustable
Product information:
Applicable Standards:
IEC61386-1:2017
IEC61386-23:2021
Specimens & Scope: Suitable for metal, non-metallic and composite conduits or fittings for electrical or communication systems up to AC 1000 V and/or DC 1500 V.
Test Purpose: To evaluate whether conduit fittings with terminations meet the mechanical performance requirements for bending resistance.
Test Principle: A servo motor drives a rotary table to bend the flexible conduit left and right at a specified speed and angle. The machine stops automatically when the preset number of cycles is reached.
Equipment Structure:
Servo motor drive with large aluminum mounting plate for large specimens, ensures the swing axis aligns as closely as possible with the cable entry point of the fitting, minimizing lateral displacement of the cable and load.
Technical parameters:
|
No. |
Item |
parameters |
|
1 |
Power supply |
AC 220 V ±10%, 50–60 Hz, 0.75 kW |
|
2 |
Test stations |
Single station |
|
3 |
Electrical control |
PLC integrated control with 7-inch HMI touch screen |
|
4 |
Drive mode |
Servo motor drive |
|
5 |
Specimen clamping |
Mechanical clamping, adjustable clamping position |
|
6 |
Bending angle |
0–360° adjustable (preset options: ±30°, ±45°, ±60°, ±90°) |
|
7 |
Bending direction |
|
|
8 |
Bending speed |
0–60 cycles/min (presettable; default 40 cycles/min) |
|
9 |
Bending cycles |
0–999,999 presettable (default 5,000 cycles) |
|
10 |
Support blocks |
Height Z: adjustable 0–300 mm Center spacing: adjustable 0–100 mm Bottom chamfer R2, top chamfer R1 |
|
11 |
Overall dimensions |
approx. 800 × 800 × 1300 mm (W × H × D) |
|
12 |
Weight |
130 kg |
