IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
Product information:
Standard: Conforms to IEC 60335-2-6 clause 22.111, etc.
Application: It is used to check whether flammable gases are emitted from the vents during the cleaning process of pyrolytic self-cleaning ovens and whether there is an ignition hazard.
Technical parameters:
|
Spark length |
About 3mm |
|
The energy of each spark |
At least 0.5J |
|
Spark generation mode |
Bipolar output |
|
Peak voltage |
±7kv |
|
Current |
40mA; 20kHz; |
|
Ignition distance |
2-5mm adjustable |

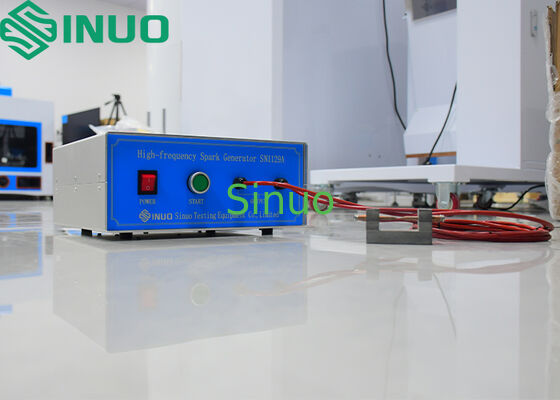

Standard pictures:
|
|
