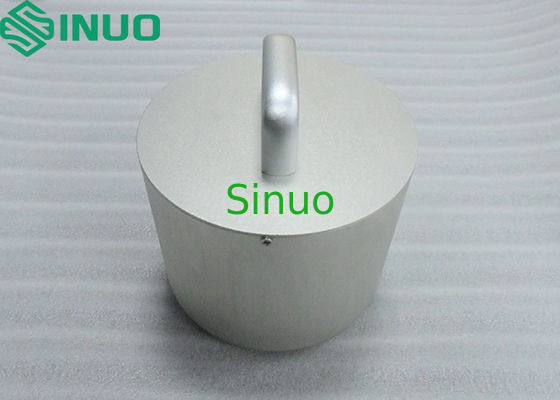

1.8 Kg Test Vessel With An Aluminum Base Diameter 120mm
| Applied Standards: | IEC 60335-2-9 | Applied Clause: | 条項21.101 |
| Vessel Diameter: | 120mm±10mm | Edge Radius: | 少なくとも10mm |
| Total Mass: | 1.8 kg ±0.01kg | Steel Ball Weight Mass: | 少なくとも1.3 kg |
| High Light: | 1.8 kg test vessel aluminum base,120mm diameter test vessel,electrical testing equipment with warranty |
||
- 120mm±10mm直径の平ら銅またはアルミニウムベース
- 最小10mmの半径で丸められた縁
- 均一に砂やショットで少なくとも1.3kgを満たす
- 総重量:1.8 kg ±0.01kg
IEC 60335-1 第 22.5 項 残電圧試験器 試験範囲 5~150V 試験阻力 ≥1000 MΩ
IEC 60335-1 Clause 22.5 Residual Voltage Tester Testing Range 5~150V Test impedance ≥1000 MΩ Product information: The Residual Voltage Tester is in accordance with the requirements of IEC 60335-1 Clause 22.5 (GB4706.1 Clause 22.5),IEC 60065 Clause 9.1.6 (GB8898 Clause 9.1.6), IEC 60601-1 (GB9706.1 ...
電気洗濯機のドアのためのIEC 60335-2-7の耐久性の試験装置
IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors SN1401 is a washing machine door and lid interlocking device durability test equipment designed for IEC 60335-2-7:2016 clause 18.101. It is used to test the reliability of the interlocking device of washing machine doors or ...
IEC 60335-1 第 11.2 項 温度上昇試験コーナーのためのブラックテストコーナー
IEC 60335-1 clause 11.2 Black Test Corner For Temperature Rising Test Corner Product information: This test corner conforms to the standard requirement of IEC 60335-1 clause 11.2, IEC60065 clause 7, etc. It is designed and manufactured to provide the required environment for the temperature rising ...
48点K熱対グリッドの調整可能な温度上昇試験コーナー IEC 60065
Adjustable Temperature Rise Test Corner with 48-Point K-Thermocouple Grid IEC 60065 Product information: The Temperature Rise Test Corner is designed and manufactured to meet the testing requirements specified in IEC 60335-1 Clause 11.2 and IEC 60065 Clause 7, among other standards. It provides a ...
