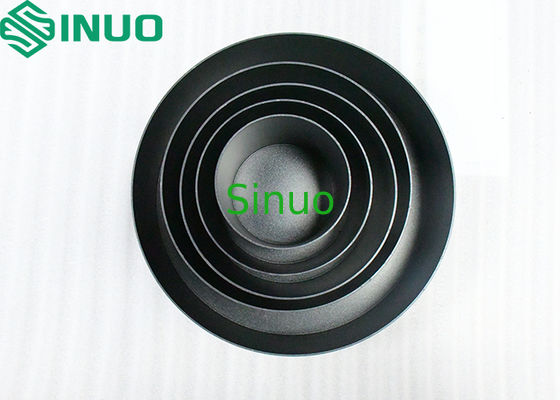

誘導加熱調理器用容器 IEC 60335-2-6:2018 図102
| Applied Standards: | IEC 60335-2-6図102、IEC 60335-2-9図104 | Vessels Size: | ut110 、145 、180、220℃300 mm |
| Vessels Material: | 低炭素鋼 | Carbon Content: | 最大0.08％ |
| Wall Thickness: | 2±0.5 mm | Vessels Function: | 料理油の暖房テスト |
| High Light: | IH調理器試験用容器,IEC 60335-2-6 適合容器,電化製品の試験装置 |
||
製品情報:
| 材料 | 低炭素鋼,最大炭素含有量は0.08% |
|---|---|
| 尺寸 (mm) |
F110:140×(2±0.5)
フ145140×(3±0.5)
F180:140×(3±0.5)
F220:120×(3±0.5)
F300:100×(5±0.5)
|
| 壁厚さ (mm) | 2±05 |
| 最大孔隙 | C·0.006d 凸でない |
| 形状と構成 | 金属のハンドル,突出物,蓋のないシリンダー |
