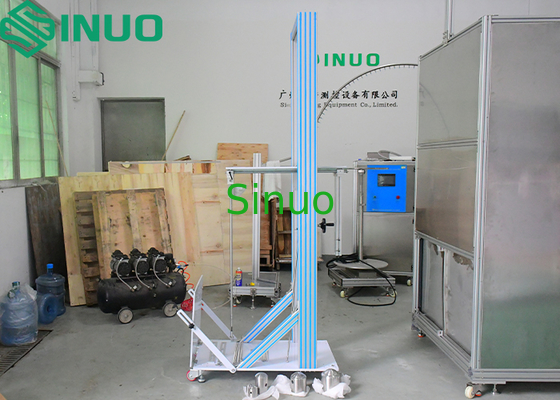

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
Product information:
This impact test apparatus is designed to evaluate the impact resistance and safety performance of household and similar electrical products and their accessories, including plugs, sockets, wall-mounted boxes, screw glands, covers, switches, and luminaires. It ensures compliance with international standards including IEC60068-2-75:2014, IEC60598-1:2017 ,
IEC62262:2002,etc.
Technical Parameters:
| Striking Elements (Energy/J) |
Optional: 2J (IK07), 5J (IK08), 10J(IK09),20J(IK10), 50J(IK11)
|
|
Equivalent Mass kg |
0.5 kg, 1.7 kg, 5 kg, 10 kg (supports various hammer heads)
|
| Striking Elements Material | Steel |
| Pendulum Tube | Length 1000㎜,outer diameter 10mm and 15.9 mm, wall thickness 1.5 mm steel pipe |
| Impact Point | Stroke: 200-1200mm, up and down adjustable by rotating the handwheel manually |
| Height of Fall | |
| Striking Element Fix and Release | Mechanical latch fixation and manual release |
| Way of moving | Equipped with casters for easy movement and positioning |
