IEC 60335-2 Enclosure Protection Testing Using Test Probe 14

IEC 60335-2 Enclosure Protection Testing Using Test Probe 14

MOQ: 1
価格: Customized
標準パッケージ: 輸出パッケージ
配達期間: 3 日
支払方法: T/T
供給能力: 月産100セット
詳細情報
起源の場所
中国
ブランド名
Sinuo
証明
Calibration Certificate(Cost Additional )
モデル番号
SN2210-10
試験基準:
IEC 60335-2-82,IEC 61032
試験サンプル:
容易にアクセスできるエンクロージャの活線部分または機械部分
ピン幅:
3mm
Pinの長さ:
80mm
材料を扱う:
ナイロン
探査物:
ステンレス鋼
ハイライト:

IEC 60335-2 Testing Probe

,

Enclosure Protection Testing Probe

製品説明



IEC 60335-2 Enclosure Protection Testing Using Test Probe 14







Product information:



Standard:Conforms to IEC 60335-2-82, test probe 14 IEC 61032 etc.

Application:It is used to verify the protection against access to hazardous live parts of socket-outlets through shutters. It is equipped with the handle which is made of nylon.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



Technical Parameters:



Name Test probe 14
Long pin width (mm) 3+0.03 0
Long pin height (mm) 1+0.015 0
Long pin length (mm) 80±0.5
Chamfer edge (mm) R0.2±0.05

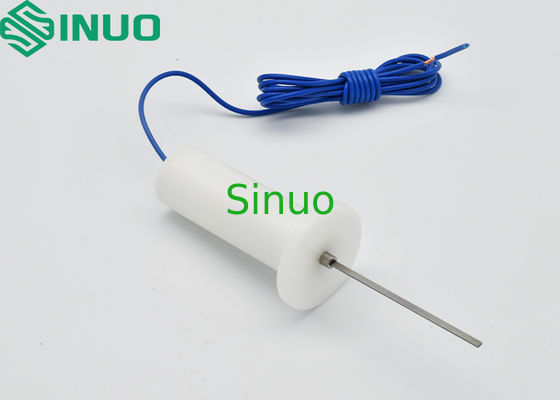

IEC 60335-2 Enclosure Protection Testing Using Test Probe 14 0

IEC 60335-2 Enclosure Protection Testing Using Test Probe 14 1
